Thông tin chi tiết sản phẩm:
Thanh toán:
|
| loại: | Điện đáy | Mô hình máy: | R140LC9 R160LC9 R180LC9 R210LC9 |
|---|---|---|---|
| Ứng dụng: | Máy đào | Tên sản phẩm: | Assy quay số tăng tốc |
| Số phần: | 21Q4-20811 | Đóng gói: | Thùng xuất khẩu tiêu chuẩn |
| Làm nổi bật: | HYUNDAI excavator dial assembly,Excavator spare parts with warranty,R140LC-9 compatible accel dial assy |
||

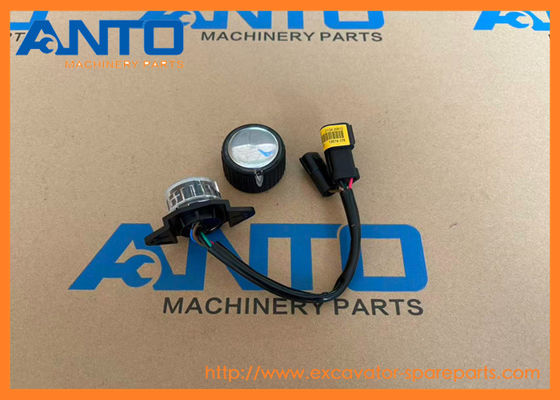

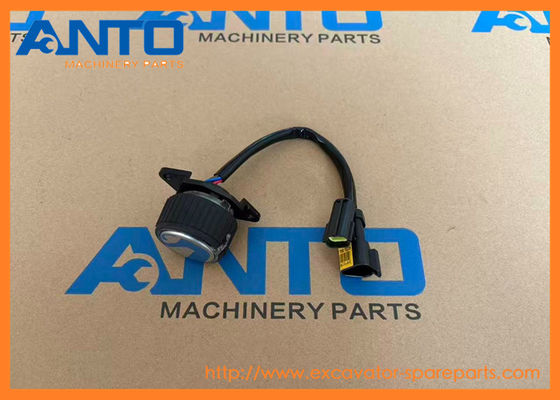

| Name | Accel Dial Assy |
| Parts No | 21Q4-20811 |
| Machine Model | R140LC9 R160LC9 R180LC9 R210LC9 R210NLC9 R235LCR9 R250LC9 |
| Category | Bottom Electric |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Function & features
1.Precise Speed Control: Allows smooth adjustment of engine RPM from idle to full speed.
2.Durable Design: High-strength materials and sealed construction resist dust, water, and vibration, ensuring long-term reliability.
3.Corrosion Resistance: Metal parts are treated to prevent rust and wear, suitable for harsh working environments.
4.Easy Installation: Standard mounting interface for quick replacement.
5.Compatibility: Can be used in various Hyundai excavator models with similar control systems.
9-SERIES CRAWLER EXCAVATOR R140LC9 R160LC9 R180LC9 R210LC9 R210NLC9 R235LCR9 R250LC9 R260LC9S R290LC9 R300LC9S R300LC9SH R320LC9 R330LC9S R330LC9SH R360LC9 R380LC9SH R390LC9 R480LC9 R480LC9S R520LC9 R520LC9S R55-9 R60CR-9 R80CR-9
9-SERIES WHEEL EXCAVATOR R140W9 R170W9 R210W-9 R55W-9 Hyundai
| 21Q4-20810 ACCEL DIAL ASSY |
| R140LC9, R160LC9, R210LC9 |
| 21Q6-20810 ACCEL DIAL ASSY |
| R145CR9, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9 |
| 21Q4-20812 ACCEL DIAL ASSY |
| HX180L, HX235L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180... |
| 21EN-32300 ACCEL ACTUATOR |
| R140LC9S, R140W9S, R210LC9BC, R210LC9BH, R210W9S, R260LC9S, RB220LC9S, RC215C7H |
| 21EN-32360 ACCEL ACTUATOR |
| R300LC9S, R330LC9S |
| 21EN-32380 ACCEL ACTUATOR(2300L) |
| R300LC9S, R300LC9SH, R330LC9S, R330LC9SH, R380LC9SH, R390LC9, R430LC9SH |
| 21Q4-20810 ACCEL DIAL ASSY |
| R140LC9, R160LC9, R210LC9 |
| 21N8-20830 ACCEL DIAL ASSY |
| R110-7A, R215LC7 |
| 21EN-32260 ACCEL ACTUATOR |
| R110-7, R140LC-7, R140W7, R210LC7H, RC215C7H |
| 11S5-10051 ACCEL LINK ASSY |
| HSL610, HSL810 |
| F53340082 ACCEL PEDAL ASSY |
| HLF20C-2 |
| F53340081 ACCEL PEDAL ASSY |
| HLF20C-2 |
| F53340080 ACCEL PEDAL ASSY |
| HLF20C-2 |
| 11FU-10011 ACCEL LINK ASSY |
| HLF20-5 |
| 11FU-10010 ACCEL LINK ASSY |
| HLF20-5 |
| 11FW-10011 ACCEL LINK ASSY |
| HLF15-5 |
| F21340123 ACCEL PEDAL ASSY |
| HLF15-2, HLF15C-3 |
| F21340122 ACCEL PEDAL ASSY |
| HLF15-2 |
| 21Q6-20810 ACCEL DIAL ASSY |
| R145CR9, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9 |
| 21EN-32200 ACCEL ACTUATOR(2950L) |
| R130W3, R160LC3, R250LC3, R290LC7, R320LC7 |
| 21N8-20901 ACCEL DIAL ASSY |
| R160LC7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| 21Q6-20811 ACCEL DIAL ASSY |
| Hyundai |
| 21EN-32240 ACCEL ACTUATOR |
| R290LC7H, R80-7 |
| 11M8-60310 ACCEL LINK ASSY |
| R55-7, RC60-7 |
| 21M8-32801 ACCEL DIAL ASSY |
| R55-7A, R55W7A |
| 11HA-10300 ACCEL LINK ASSY |
| 20DT, 35DF |
| 21Q4-20812 ACCEL DIAL ASSY |
| HX180L, HX235L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180... |
| 21EN-32300 ACCEL ACTUATOR |
| R140LC9S, R140W9S, R210LC9BC, R210LC9BH, R210W9S, R260LC9S, RB220LC9S, RC215C7H |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21Q4-20811 | [1] | ACCEL DIAL ASSY | |
| 1 | 21Q4-20812 | [1] | ACCEL DIAL ASSY | |
| 2 | 21E6-10460 | [3] | COVER | |
| 3 | S131-040826 | [2] | SCREW-W/WASHER | |
| 4 | 21Q6-10604 | [1] | HARNESS-RH,CONSOLE | |
| 5 | 25D1-10650 | [1] | CLIP ASSY | |
| 6 | S037-101526 | [8] | BOLT-W/WASHER | |
| 7 | 21N4-01100 | [1] | PLATE-STEERING | |
| 8 | 31L7-10200 | [1] | CLAMP-TUBE | |
| 9 | 21N4-01130 | [5] | PLATE-CLIP | |
| 10 | 21Q6-21570 | [1] | PLATE | |
| 11 | 21Q6-10904 | [1] | HARNESS-LH CONSOLE | |
| 12 | 21N4-01111 | [6] | CLIP-ECONO SEAL | |
| 13 | 21NA-10500 | [1] | STRAP-EARTH | |
| 14 | S035-082026 | [4] | BOLT-W/WASHER | |
| 15 | 25D1-10670 | [1] | CLIP | |
| 16 | 21E7-0612 | [1] | PLATE-CONNECTOR | |
| 17 | S151-050166 | [4] | SCREW-TAPPING | |
| 18 | 21Q6-21640 | [1] | FLANGE | |
| 19 | 21Q6-22150 | [1] | SWITCH-SAFETY | |
| 20 | 21Q4-30390 | [1] | SWITCH-CREEP | |
| 21 | S131-043026 | [2] | SCREW-W/WASHER | |
| 22 | 21Q6-11610 | [1] | HARNESS-STOP LAMP | |
| 23 | 21Q4-40300 | [1] | CONNECTOR-AIR | |
| 24 | 21Q4-40011 | [1] | SWITCH-AIR COMPROSSOR | OPTION |
| 25 | 21Q4-02210 | [1] | DECAL-EMERGENCY SW | EXPORT |
| 26 | 21QA-22100 | [1] | SWITCH-EMERGENCY STOP | EXPORT |
| 26 | 21QA-22101 | [1] | SWITCH-EMERGENCY STOP | EXPORT |
| 27 | S035-061526 | [2] | BOLT-W/WASHER | |
| 28 | 21Q6-21650 | [1] | PLATE | LOCAL |
| 29 | 21Q6-21810 | [1] | GROMMET | |
| 30 | 21Q6-21900 | [1] | HARNESS-LH CONSOLE | PROPORTION/RCV |
| 31 | 21Q6-10607 | [1] | HARNESS-RH CONSOLE | PROPORTION/RCV |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
