Thông tin chi tiết sản phẩm:
Thanh toán:
|
| loại: | Van điều khiển từ xa | Mô hình máy: | DH225-9 DH300-9 DH150-9 |
|---|---|---|---|
| Ứng dụng: | Máy đào | Tên sản phẩm: | Joytick Valve Assy |
| Số phần: | 420-00342A 420-00343A | Đóng gói: | Thùng xuất khẩu tiêu chuẩn |
| Làm nổi bật: | Doosan excavator joystick valve assembly,DH225-9 excavator spare parts,DH300-9 joystick valve with warranty |
||

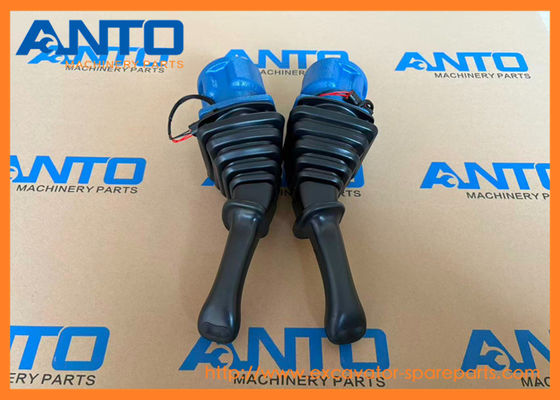

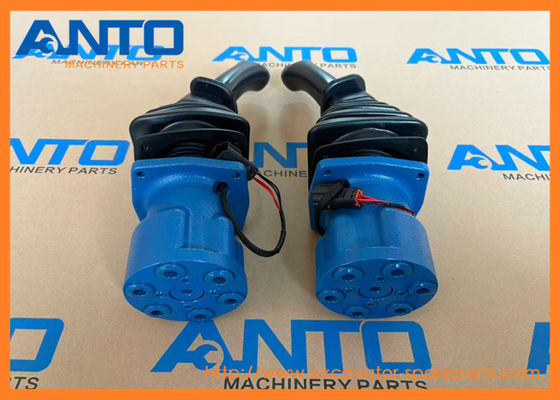

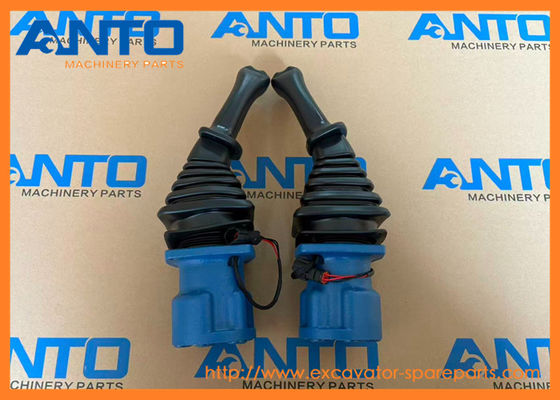

| Name | Joytick Valve Assy |
| Parts No | 420-00342A 420-00343A |
| Machine Model | DH225-9 DH300-9 DH150-9 |
| Category | Remote Control Valve |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Working Principle
1. Handle movement pushes the pilot valve spool
2. The pilot oil circuit outputs a hydraulic pressure signal proportional to the displacement
3. This signal acts on the corresponding spool in the main control valve, regulating the flow and direction of the main oil circuit
4. A spring return ensures that the spool returns to its original position when the handle returns to the center position
OTHER: DOOSAN-DAEWOO (NOW LOADING DATABASE) SOLAR Komatsu
| K1007090B REMOTE CONTROL VALVE(R.H) |
| Doosan |
| K1007088B REMOTE CONTROL VALVE(L.H) |
| Doosan |
| 2420-9518 REMOTE CONTROL V/V(LH) |
| Doosan |
| 2420-9519 REMOTE CONTROL V/V(RH) |
| Doosan |
| K1007088A REMOTE CONTROL VALVE(L.H) |
| Doosan |
| 400-00645 REMOTE PRESSURE CHECK PIPING |
| Doosan |
| K1007090A REMOTE CONTROL VALVE(R.H) |
| Doosan |
| 420-00015A REMOTE CONTROL V/V(RH) |
| Doosan |
| 420-00014A REMOTE CONTROL V/V(LH) |
| Doosan |
| K1004865C REMOTE PRESSURE CHECK PIPING |
| Doosan |
| K1004865B REMOTE PRESSURE CHECK PIPING |
| Doosan |
| K1004865A REMOTE PRESSURE CHECK PIPING |
| Doosan |
| Pos. | Part No | Qty | Parts name | Comments |
| -. | 420-00342A | [1] | REMOTE CONTROL VALVE(L.H) Komatsu China | |
| ["desc: MANETTE DE CONTROLE"] | ||||
| -. | 420-00343A | [1] | REMOTE CONTROL VALVE(R.H) Komatsu China | |
| ["desc: MANETTE DE CONTROLE"] | ||||
| 1 | JA1G1001 | [1] | CASE Komatsu China | |
| ["desc: CARTER"] | ||||
| 2 | WPT18 | [1] | PLUG Komatsu China | |
| ["desc: BOUCHON"] | ||||
| 3 | J95C1002 | [1] | PLUG Komatsu China | |
| ["desc: BOUCHON"] | ||||
| 4 | P0010A | [1] | O-RING Komatsu China | |
| ["desc: JOINT TORIQUE"] | ||||
| 5 | P0014 | [1] | O-RING Komatsu China | |
| ["desc: JOINT TORIQUE"] | ||||
| 6 | J95C1003 | [4] | SPOOL Komatsu China | |
| ["SC: D", "desc: PLUNGEUR"] | ||||
| 7 | J95C1004 | [4] | SHIM Komatsu China | |
| ["SC: D", "desc: CALE"] | ||||
| 8 | JA0D3001 | [2] | SPRING(1.3) Komatsu China | |
| ["SC: D", "desc: RESSORT"] | ||||
| 9 | JA0D3002 | [2] | SEAT;SPRING(1.3) Komatsu China | |
| ["SC: D", "desc: SIEGE"] | ||||
| 10 | J95C1007 | [4] | SPRING Komatsu China | |
| ["desc: RESSORT"] | ||||
| 11 | JA0D3003 | [4] | STOPPER Komatsu China | |
| ["SC: D", "desc: ARRET"] | ||||
| 12 | J97A5011 | [2] | STOPPER(1.3) Komatsu China | |
| ["SC: D", "desc: ARRET"] | ||||
| 13 | JA0D3004 | [4] | SPRING Komatsu China | |
| ["SC: D", "desc: RESSORT"] | ||||
| 14 | JA0D3005 | [4] | ROD;PUSH Komatsu China | |
| ["SC: D", "desc: TIGE DE POUSSOIR"] | ||||
| 15 | JA0D3006 | [2] | SPRING(2.4) Komatsu China | |
| ["SC: D", "desc: RESSORT"] | ||||
| 16 | JA0D3007 | [2] | SEAT;SPRING(2.4) Komatsu China | |
| ["SC: D", "desc: SIEGE"] | ||||
| 17 | J97A5012 | [2] | STOPPER(2.4) Komatsu China | |
| ["SC: D", "desc: ARRET"] | ||||
| 18 | JA0D3008 | [4] | PLUG Komatsu China | |
| ["SC: D", "desc: BOUCHON"] | ||||
| 19 | P0020 | [4] | O-RING Komatsu China | |
| ["SC: D", "desc: JOINT TORIQUE"] | ||||
| 20 | RSY12 | [4] | SEAL;ROD Komatsu China | |
| ["SC: D", "desc: TIGE D'ETANCHEITE"] | ||||
| 21 | JA1G1002 | [1] | PLATE Komatsu China | |
| ["desc: PLAQUE"] | ||||
| 22 | J97A5018 | [1] | BOOT Komatsu China | |
| ["desc: GAINE DE PROTECTION"] | ||||
| 23 | J95C1012 | [1] | JOINT ASS'Y Komatsu China | |
| ["desc: ENSEMBLE DE JOINT"] | ||||
| 24 | JA1G1004 | [1] | PLATE;SWASH Komatsu China | |
| ["desc: PLAQUE"] | ||||
| 25 | J95C1014 | [1] | NUT;HEX. Komatsu China | |
| ["desc: ECROU 6 PANS"] | ||||
| 26 | JA1D2001 | [1] | BAR;HANDLE Komatsu China | |
| ["SC: D", "desc: JAGUE DE NIVEAU"] | ||||
| 27 | HNM14 | [1] | NUT;HEX. Komatsu China | |
| ["SC: D", "desc: ECROU 6 PANS"] | ||||
| 28 | JA1D2002 | [1] | BOOT Komatsu China | |
| ["desc: GAINE DE PROTECTION"] | ||||
| 29 | SP0528 | [1] | PIN;SPRING Komatsu China | |
| ["SC: D", "desc: GOUPILLE"] | ||||
| 30 | JA0E3026 | [1] | HANDLE ASS'Y Komatsu China | |
| ["SC: D", "desc: HANDLE ASS'Y"] | ||||
| 30A. | 1.161-00021 | [1] | . CAP;PEANUT Komatsu China | |
| ["SC: D", "desc: . CHAPEAU"] | ||||
| 31 | JA1G1003 | [1] | BUSHING Komatsu China | |
| ["desc: DOUILLE"] | ||||
| 32 | - | [4] | TERMINAL Komatsu China | |
| ["SC: D", "desc: TERMINAL"] | ||||
| 34 | SWP4PT | [1] | HOUSING Komatsu China | |
| ["SC: D", "desc: CARTER"] | ||||
| 35 | SWP4P | [1] | HOLDER;REAR Komatsu China | |
| ["SC: D", "desc: POSSESSEUR"] | ||||
| 36 | JA0D3009 | [2] | SPOOL KIT(1.3PORT) Komatsu China | |
| ["desc: KIT DE TRAITEMENT DIFFERE"] | ||||
| 37 | JA0D3010 | [2] | PLUG KIT (1.3PORT) Komatsu China | |
| ["desc: KIT DE PRISE"] | ||||
| 38 | JA0D3011 | [2] | SPOOL KIT(2.4PORT) Komatsu China | |
| ["desc: KIT DE TRAITEMENT DIFFERE"] | ||||
| 39 | JA0D3012 | [2] | PLUG KIT (2.4PORT) Komatsu China | |
| ["desc: KIT DE PRISE"] | ||||
| 40 | JA1G1005 | [1] | HANDLE KIT Komatsu China | |
| ["desc: KIT ASS'Y"] | ||||
| 50 | K9001001 | [1] | SWITCH ASS'Y Komatsu China | |
| ["desc: INTERRUPTEUR"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
