Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Mô hình động cơ: | 3066 | Mô hình máy: | 318C 319C 320B 320C 320C FM 320C L 320D |
|---|---|---|---|
| Ứng dụng: | Máy đào | Tên sản phẩm: | Che phủ |
| Số phần: | 168-0582 34340-12501 | Đóng gói: | Thùng xuất khẩu tiêu chuẩn |
| Làm nổi bật: | Excavator cover spare parts,Excavator fitting for 3066,Excavator spare parts with warranty |
||

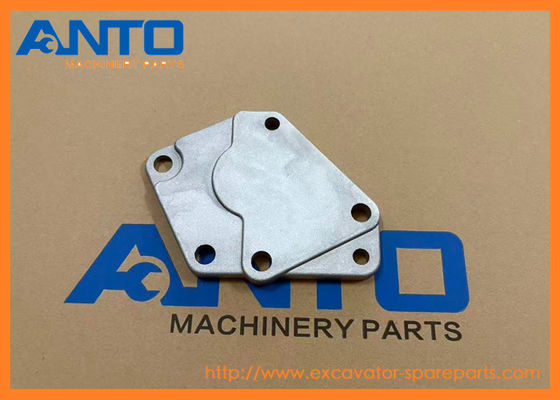

| Name | Cover |
| Parts No | 168-0582 34340-12501 |
| Machine Model | 318C 319C 320B 320C 320C FM 320C L 320D 320D FM RR 320D LRR |
| Category | Engine Oil Filter |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
When the hydraulic oil volume changes due to temperature fluctuations or system operation, the breather cap allows clean air to enter and exit the tank, maintaining stable pressure. The filter element prevents dust, moisture and impurities from entering, ensuring the cleanliness of the hydraulic oil and reducing wear on components such as pumps and valves.
| 9G8909 COVER-TERMINAL |
| 1090, 1190, 1190T, 120B, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 1290T, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 130G, 135H, 135H NA, 1390, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 143H,... |
| 9R7980 COVER |
| 120H ES, 12H ES, 140H ES, 143H, 14H NA, 160H ES, 163H NA, 16H NA, 216, 216B, 216B3, 226B, 226B3, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247B, 247B3, 252B, 252B3, 256C, 257B, 257B... |
| 1909775 COVER AS-FILTER |
| 120H, 12H, 135H, 140H, 143H, 14H, 160H, 163H, 16H, 30/30, 311D LRR, 312D, 312D L, 314D CR, 314D LCR, 315D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR... |
| 8E5605 COVER-CARRIER ROLLER |
| 311, 311B, 311C, 312, 312B, 315, 315B L, 315C, 315D L, 316E L, 317, 317B LN, 318B, 318C, 318D L, 318D2 L, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L... |
| 7Y1781 COVER |
| 311, 311B, 312, 312B, 313D2 LGP, 315, 315B, 315B FM L, 315B L, 315C, 315D L, 316E L, 317, 317B LN, 318B, 318C, 318D L, 318D2 L, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320B L, 320C, 320C L, ... |
| 7Y1426 COVER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 1516844 COVER |
| 307C, 307D, 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 313D, 313D2, 315C, 315D L, 318C, 318D L, 318D2 L, 319D L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 3... |
| 1786538 COVER AS |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN... |
| 5I7587 COVER |
| 318C, 319C, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321C, 321D LCR, 323D L, 323D LN, 323D SA |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1R-0739 | [1] | FILTER AS-ENGINE OIL (STANDARD EFFICIENCY) | |
| 2 | 183-8179 | [1] | BASE AS | |
| 2A. | 096-3321 | [2] | PLUG | |
| 3 | 178-6569 | [1] | PLUG | |
| 4 | 5I-8026 | [1] | VALVE AS (OIL FILTER DRAIN) | |
| 5 | 5B-5947 | [2] | GASKET | |
| 6 | 8C-3446 | [1] | VALVE-SAMPLING (OIL) | |
| 7 | 178-6567 | [1] | SEAL-O-RING | |
| 8 | 196-8192 | [1] | BOLT (M16X1.5X53-MM) | |
| 9 | 178-6566 M | [1] | NUT (M16X1.5-THD) | |
| 10 | 4I-9404 | [2] | SEAL-O-RING | |
| 11 | 168-0582 | [1] | COVER | |
| 12 | 125-2972 | [1] | GASKET | |
| 13 | 5I-8066 | [1] | VALVE AS-RELIEF (OIL PRESSURE) | |
| 14 | 196-8228 | [1] | HOSE | |
| 15 | 196-8227 | [1] | CLAMP | |
| 16 | 8T-4908 M | [2] | BOLT (M8X1.25X25-MM) | |
| 17 | 3B-4505 | [6] | LOCKWASHER | |
| 18 | 5I-7505 | [1] | PLUG | |
| 19 | 178-6576 M | [1] | BOLT (M8X1.25X75-MM) | |
| 20 | 178-6577 M | [2] | BOLT (M8X1.25X100-MM) | |
| 21 | 196-8191 | [1] | BRACKET AS | |
| 22 | 8T-4136 M | [10] | BOLT (M10X1.5X25-MM) | |
| 23 | 7X-0796 | [12] | LOCKWASHER (10.2X18.4X2.5-MM THK) | |
| 24 | 8T-4195 M | [1] | BOLT (M10X1.5X30-MM) | |
| 25 | 8T-4121 | [3] | WASHER-HARD (11X21X2.5-MM THK) | |
| 26 | 8T-4137 M | [1] | BOLT (M10X1.5X20-MM) | |
| 27 | 178-6571 | [1] | GASKET | |
| 28 | 125-2979 | [1] | GASKET | |
| 29 | 8T-7329 M | [1] | BOLT (M8X1.25X55-MM) | |
| 30 | 8C-3445 | [1] | CAP-DUST (OIL SAMPLING VALVE) | |
| M | METRIC PART |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
