Thông tin chi tiết sản phẩm:
Thanh toán:
|
| loại: | Động cơ quạt kéo | Mô hình máy: | PC300 PC300HD PC300ll PC350 PC350HD |
|---|---|---|---|
| Ứng dụng: | Máy đào | Tên sản phẩm: | Hỗ trợ người hâm mộ |
| Số phần: | 6743-61-3501 6743-61-3500 3415603 | Đóng gói: | Thùng xuất khẩu tiêu chuẩn |
| Làm nổi bật: | KOMATSU excavator fan support assembly,PC350LC-8 spare parts fan,Excavator fan support assy with warranty |
||

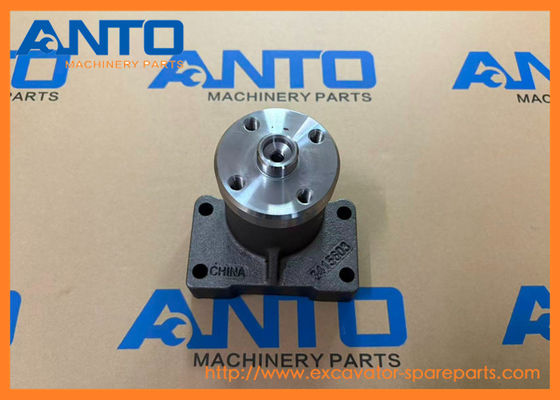

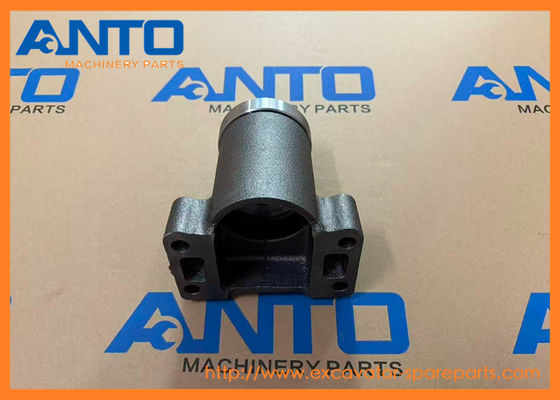

| Name | Fan Support |
| Parts No | 6743-61-3501 6743-61-3500 3415603 |
| Machine Model | PC300 PC300HD PC300LL PC350 PC350HD PC350LL |
| Category | Fan Drive Pully |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Functions
1.Structural Support: Secures the cooling fan to the engine or hydraulic system, maintaining precise alignment with the drive pulley to prevent vibration and premature wear.
2.Force Distribution: Absorbs radial and axial loads generated by fan rotation (typically 1,500–2,200 RPM), protecting the fan shaft and bearings.
3.Thermal Management: Allows airflow clearance between the fan and radiator while withstanding radiant heat from the engine.
4.Compatibility: Interfaces with fan guards, drive belts, and tensioners to form a complete cooling system.
ENGINES Engine SAA6D114E
EXCAVATORS PC300 PC300HD PC300LL PC350 PC350HD PC350LL Komatsu
| 6744-41-1010 SUPPORT, THRUST |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, PC360, PC390, PC390LL, SAA6D114E, WA430 |
| 6745-71-1210 SUPPORT, FUEL PUMP |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, PC360, PC390, PC390LL, SAA6D114E, WA430 |
| 6745-71-6210 SUPPORT, FILTER |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, SAA6D114E, WA430 |
| 6744-41-5030 SUPPORT, ROCKER LEVER |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, PC360, PC390, PC390LL, SAA6D114E, WA430 |
| 6732 41 1220 SUPPORT, CAMSHAFT THRUST |
| 150A/FA, 4D102E, 538, 542, 6D102, 6D102E, 708, 712, 830,, 830B, 850B, 870B, D32E, D38E, D39E, D61EX, D61PX, DCA, GD530A/AW, GD650A, GD650A/AW, PC200, PC200LL, PC200Z, PC210, PC220, PC220LL, PC250, PC2... |
| 207-30-53151 SUPPORT, LH |
| 430FX, 430FXL, AIR, BR550JG, BR580JG, PC220LL, PC250, PC250HD, PC270, PC290, PC300, PC300SC, PC308, PC310, PC340, PC350, PC360, PRESSURE, RAIN |
| 207-30-68230 SUPPORT |
| PC270, PC290, PC300, PC340, PC350 |
| 207-54-71840 SUPPORT |
| PC300, PC300HD, PC300LL, PC340, PC350, PC360, PC380, PC400, PC450, PC550 |
| 208-30-53160 SUPPORT |
| 445FXL, 450FXL, BR500JG, PC300, PC300HD, PC300LL, PC350HD, PC380, PC390, PC400, PC400HD, PC400ST, PC410, PC450, PC550 |
| 208-30-53150 SUPPORT |
| 445FXL, 450FXL, BR500JG, PC300, PC300HD, PC300LL, PC350HD, PC380, PC390, PC400, PC400HD, PC400ST, PC410, PC450, PC550 |
| 207-54-71840 SUPPORT |
| PC300, PC300HD, PC300LL, PC340, PC350, PC360, PC380, PC400, PC450, PC550 |
| 208-06-31160 SUPPORT |
| PC300, PC400 |
| 207-54-31680 SUPPORT |
| PC300, PC400 |
| 207-54-31681 SUPPORT |
| PC300, PC400 |
| YM129211-66200 SUPPORT |
| 3D84E, PC35R |
| YM119910-12560 SUPPORT |
| 3D84E, 4D84E, 4D88E, PC35R, PC45R, SK714, SK815, SK818 |
| YM129612-13551 SUPPORT |
| 3D84E, 4D84E, PC35R, PC45R |
| YM129612-13560 SUPPORT |
| 3D84E, 4D84E, PC35R, PC45R |
| 20T-54-87210 SUPPORT |
| PC30R, PC35R, PC40R, PC45R |
| 312205713 SUPPORT |
| WB95R |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6743-61-3310 | [1] | PULLEY Komatsu | 3.982 kg. |
| ["Field_1: 26800230--UP"] | ||||
| 2 | 6743-61-3210 | [1] | SPACER Komatsu | 4.65 kg. |
| ["Field_1: 26800230--UP"] | ||||
| 3 | 6743-61-3220 | [1] | PLATE Komatsu | 4.65 kg. |
| ["Field_1: 26800230--UP"] | ||||
| 4 | 01435-01095 | [1] | BOLT Komatsu | 0.059 kg. |
| ["Field_1: 26800230--UP"] | ||||
| 5 | 01435-01085 | [1] | BOLT Komatsu | 0.055 kg. |
| ["Field_1: 26800230--UP"] | ||||
| 6743-61-3501 | [1] | SUPPORT ASS'Y Komatsu | 5.63 kg. | |
| ["Field_1: 26801815--UP"] analogs:["6743613500"] |$6. | ||||
| 6743-61-3500 | [1] | SUPPORT ASS'Y Komatsu | 5.63 kg. | |
| ["Field_1: 26800230--26801814"] analogs:["6743613501"] |$7. | ||||
| 7. | 6731-61-3420 | [1] | RING,SNAP Komatsu | 0.01 kg. |
| ["Field_1: 26800230--UP"] | ||||
| 8. | 6731-61-3430 | [1] | RETAINER Komatsu | 0.24 kg. |
| ["Field_1: 26800230--UP"] | ||||
| 9. | 6743-61-3530 | [1] | BEARING,BALL Komatsu China | |
| ["Field_1: 26800230--UP"] | ||||
| 10. | 6743-61-3560 | [1] | BEARING,BALL Komatsu China | |
| ["Field_1: 26801815--UP"] | ||||
| 6743-61-3540 | [1] | BEARING,BALL Komatsu China | ||
| ["Field_1: 26800230--26801814"] |$13. | ||||
| 11. | 6743-61-3550 | [1] | HUB Komatsu China | |
| ["Field_1: 26800230--UP"] | ||||
| 12 | 6743-61-3610 | [3] | BOLT Komatsu | 0.04 kg. |
| ["Field_1: 26800230--UP"] | ||||
| 13 | 01435-01075 | [1] | BOLT Komatsu | 0.049 kg. |
| ["Field_1: 26800230--UP"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
