Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Loại: | Phụ tùng HYUNDAI | Mã sản phẩm: | 31QB-10011 |
|---|---|---|---|
| Tên sản phẩm: | Bơm chính | Số máy: | R480LC-9A R480LC-9S R520LC-9 |
| Ứng dụng: | Máy xúc | thời gian dẫn: | 1-3 ngày để giao hàng |
| đóng gói: | Thùng xuất khẩu tiêu chuẩn | ||
| Làm nổi bật: | HYUNDAI excavator main pump,R480LC-9 hydraulic pump,R520LC-9 spare parts pump |
||

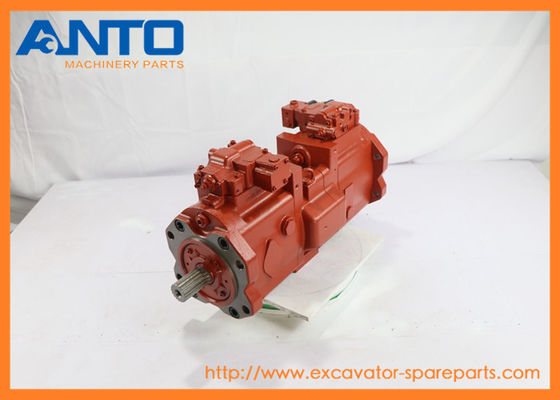

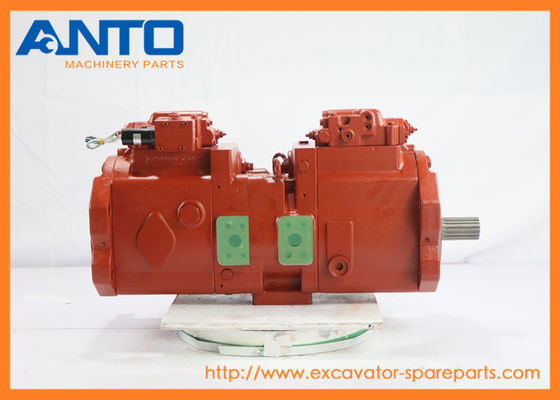

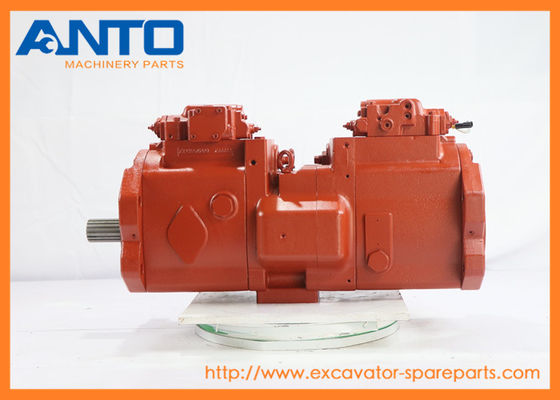

31QB-10011 Main Pump HYUNDAI Excavator Spare Parts Fitting For R480LC-9 R520LC-9
Specifiion
| Category | HYUNDAI Spare Parts |
| Name | Main Pump |
| Parts No | 31QB-10011 |
| Machine Number | R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Engine power drives the pump shaft, rotating the cylinder block and pistons |
| 2. Pistons reciprocate to draw hydraulic oil into the pump (suction stroke) and pressurize it (delivery stroke) | |
| 3. Load-sensing valve detects system pressure/flow demand, adjusting the cylinder block angle to vary displacement | |
| 4. Pressurized oil is delivered to hydraulic valves, which distribute it to actuators (cylinders/motors) to drive machine movements | |
| 5. Relief valve releases excess pressure if system pressure exceeds the maximum rating, preventing damage | |
| Core Functions | 1. Convert engine mechanical power into hydraulic energy for the entire hydraulic system |
| 2. Supply stable, high-pressure oil flow to power all machine functions (digging, lifting, swing, travel) | |
| 3. Optimize energy efficiency via load-sensing control to reduce fuel consumption | |
| 4. Protect the hydraulic system from overpressure and contamination | |
| 5. Ensure smooth, responsive operation of the excavator |
9-SERIES CRAWLER EXCAVATOR R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S Hyundai
| 21Q6-41390 MAIN PCB ASSY |
| HX180L, R125LCR-9A, R140LC9, R140LC9A, R140W9, R140W9A, R145CR9A, R160LC9A, R160W9A, R170W9, R180LC9A, R180W9A, R210LC9, R210W-9, R210W9A, R210W9AMH, R220LC9A, R220NLC9A, R235LCR9A, R250LC9A, R300LC9A... |
| 21Q6-43400 MAIN PCB ASSY |
| R140LC9S, R140W9S, R160LC9S, R170W9S, R180LC9S, R180W9S, R210LC9BC, R210LC9BH, R210W9S, R260LC9S, R300LC9S, R300LC9SH, R330LC9S, R330LC9SH, R380LC9SH, R390LC9, R430LC9SH, R480LC9S, R520LC9S, RB140LC9S... |
| 21Q6-43430 MAIN PCB |
| R140LC9S, R140W9S, R160LC9S, R170W9S, R180LC9S, R180W9S, R210LC9BC, R210LC9BH, R210W9S, R260LC9S, R300LC9S, R300LC9SH, R330LC9S, R330LC9SH, R380LC9SH, R390LC9, R430LC9SH, R480LC9S, R520LC9S, RB140LC9S... |
| 39QB-41150 MAIN SPOOL ASSY |
| HX430L, HX480L, HX520L, R430LC9, R430LC9A, R430LC9SH, R450LC7, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 21Q6-43300 MAIN PCB ASSY |
| R140LC9, R140LC9S, R140W9, R140W9S, R145CR9, R160LC9S, R170W9, R180LC9, R180LC9S, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9S, R235LCR9, R250LC9, R260LC9S, R290LC9, R290LC9MH, R... |
| 31QB-17730 MAIN RELIEF VALVE |
| HX480L, HX520L, R360LC9, R380LC9SH, R390LC9, R430LC9, R430LC9SH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 31QB-14110 MAIN CONTROL VALVE |
| R480C9MH |
| 31QB-17000 MAIN CONTROL VALVE |
| R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| 31QB-17100 MAIN CONTROL VALVE |
| R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| XKBN-02635 MAIN BODY ASSY |
| BREAKERS, R520LC9, R520LC9A, R520LC9S |
| 31QB-17730K MAIN RELIEF VALVE |
| HX480L, HX520L, R430LC9, R430LC9SH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 21Q6-41391 MAIN PCB ASSY |
| R125LCR-9A, R140LC9A, R140W9A, R145CR9A, R160LC9A, R160W9A, R180LC9A, R180W9A, R210W9A, R210W9AMH, R220LC9A, R220NLC9A, R235LCR9A, R250LC9A, R300LC9A, R330LC9A, R380LC9A, R430LC9A, R480LC9A, R520LC9A |
| 31NB-16110 MAIN CONTROL VALVE |
| R450LC7, R450LC7A |
| 31NB-10110 MAIN CONTROL VALVE |
| R450LC7, R450LC7A |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31QB-10011 | [1] | MAIN PUMP | *-1,-2,-3,-4 |
| *-1. | @ | [1] | MAIN PUMP UNIT | |
| 111 | XJBN-00976 | [1] | SHAFT-DRIVE(F) | |
| 113 | XJBN-00977 | [1] | SHAFT-DRIVE(R) | |
| 114 | XJBN-00572 | [1] | COUPLING-SPLINE | |
| 123 | XJBN-00571 | [2] | BEARING-ROLLER | |
| 124 | XJBN-00978 | [2] | BEARING-NEEDLE | |
| 127 | XJBN-00569 | [3] | SPACER-BEARING | |
| 130 | XJBN-00568 | [1] | BOOSTER | |
| 12 | XJBN-00680 | [2] | BLOCK-CYLINDER | |
| N151. | XJBN-00681 | [18] | PISTON | |
| N152. | XJBN-01522 | [18] | SHOE | |
| 153 | XJBN-00683 | [2] | PLATE-SET | |
| 156 | XJBN-00564 | [2] | BUSHING-SPHERICAL | |
| 157 | XJBN-00541 | [18] | SPRING-CYLINDER | |
| 211 | XJBN-00023 | [2] | PLATE-SHOE | |
| 212 | XJBN-00012 | [2] | PLATE-SWASH | |
| 214 | XJBN-00013 | [2] | BUSHING-TILTING | |
| 251 | XJBN-00560 | [2] | SUPPORT-S.P. | |
| 261 | XJBN-00025 | [1] | COVER(FR)-SEAL | |
| 263 | XJBN-00979 | [1] | COVER(RR)-SEAL | |
| 271 | XJBN-01594 | [2] | CASING-PUMP | |
| 311 | XJBN-00559 | [1] | COVER-VALVE(F) | |
| 312 | XJBN-00558 | [1] | COVER-VALVE(R) | |
| N313. | XJBN-01387 | [1] | PLATE(R)-VALVE | |
| N314. | XJBN-01388 | [1] | PLATE(L)-VALVE | |
| 401 | XJBN-00028 | [4] | SCREW | |
| 402 | XJBN-00555 | [4] | SCREW-HEX SOC HD | |
| 406 | XJBN-00355 | [8] | SCREW-HEX SOC HD | |
| 466 | XJBN-00356 | [4] | PLUG-VP | |
| 468 | XJBN-00031 | [4] | PLUG | |
| 490 | XJBN-00032 | [28] | PLUG | |
| 492 | XJBN-00234 | [1] | PLUG | |
| N531. | XJBN-00981 | [2] | PIN-TILTING | |
| 532 | XJBN-00703 | [2] | PISTON-SERVO | |
| 534 | XJBN-00034 | [2] | STOPPER(L) | |
| 535 | XJBN-00035 | [2] | STOPPER(S) | |
| N548. | XJBN-00360 | [2] | PIN-FEED BACK | |
| 702 | XJBN-00040 | [2] | O-RING | |
| 706 | XJBN-00982 | [1] | O-RING | |
| 710 | XJBN-00983 | [2] | O-RING | |
| 717 | XJBN-00984 | [2] | O-RING | |
| 719 | XJBN-00985 | [3] | O-RING | |
| 724 | XJBN-00902 | [15] | O-RING | |
| 725 | XJBN-00903 | [10] | O-RING | |
| 728 | XJBN-00905 | [4] | O-RING | |
| 732 | XJBN-00047 | [2] | O-RING | |
| 774 | XJBN-01595 | [1] | SEAL-OIL | |
| 789 | XJBN-00049 | [2] | RING-BACK UP | |
| 792 | XJBN-00050 | [2] | RING-BACK UP | |
| 808 | XJBN-00051 | [4] | NUT | |
| 824 | XJBN-00052 | [2] | RING-SNAP | |
| 885 | XJBN-00053 | [2] | PIN 2 | |
| 886 | XJBN-00054 | [5] | PIN-SPRING | |
| 901 | XJBN-00055 | [2] | BOLT-EYE | |
| 953 | XJBN-00056 | [2] | SCREW-SET | |
| 954 | XJBN-00553 | [2] | SCREW-SET | |
| 956 | XJBN-01181 | [8] | SCREW-SET | |
| 981 | XJBN-00156 | [1] | NAME PLATE | |
| 983 | XJBN-00455 | [2] | PIN | |
| *-2. | @ | [1] | REGULATOR ASSY | SEE 4020,FRONT |
| *-2. | @ | [1] | REGULATOR ASSY | SEE 4030,REAR |
| *-3. | @ | [1] | GEAR PUMP | SEE 4040 |
| S011. | XJBN-01523 | [2] | PISTON ASSY | SEE ILLUST |
| S013. | XJBN-01383 | [1] | CYLINDER ASSY-RH | SEE ILLUST |
| S014. | XJBN-01384 | [1] | CYLINDER ASSY-LH | SEE ILLUST |
| S030. | XJBN-00011 | [2] | SWASH PLATE ASSY | SEE ILLUST |
| S530. | XJBN-00986 | [2] | TILTING PIN SUB ASSY | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
