Thông tin chi tiết sản phẩm:
Thanh toán:
|
| loại: | bộ phận hộp số du lịch | Model máy: | EC240C EC290C EC330C EC360C |
|---|---|---|---|
| Ứng dụng: | Máy xúc | Tên sản phẩm: | Bánh răng |
| Mã sản phẩm: | VOE14566416 VOE14566421 | đóng gói: | Thùng xuất khẩu tiêu chuẩn |
| Làm nổi bật: | EC240C excavator travel gearbox,EC290B excavator gearbox parts,EC300 excavator spare parts |
||
| Name | Gear |
| Parts No | VOE14566416 VOE14566421 |
| Machine Model | EC240C EC290B EC290C EC300D EC300E EC330B EC340D EC350D |
| Category | Travel Gearbox Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| Transmit engine power and torque to the drive system |
| Match rotational speed and torque for working and traveling |
| Ensure smooth, stable, and efficient machine movement |
| Withstand heavy load, impact, and long working hours |
| VOE8131848 Gear |
| A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A45G FS, A60H, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480E... |
| VOE14622913 Gear |
| EC380D |
| VOE14511979 Gear |
| EC330B, EC360B, EC360C, EC380DHR, ECR305C |
| VOE14551889 Gear |
| EC240C, EC290C, FC2924C, FC3329C |
| VOE14552252 Gear |
| EC360C |
| VOE14599952 Gear |
| EC250D, EC250E, EC300D, EC300E |
| VOE14599938 Gear |
| EC250D, EC250E, EC300D, EC300E |
| VOE14599932 Gear |
| EC250D, EC250E, EC300D, EC300E |
| VOE14599945 Gear |
| EC250D, EC250E, EC300D, EC300E |
| VOE22628886 Gear |
| EC250D, EC250E, EC300D, EC300E, EC350D, G900B, G900C, L110G, L110H, L120G, L120H, P7110, P7110B, P7170, P7170B, P7820C ABG, P8820C ABG, PL3005D, PL3005E |
| VOE14622904 Gear |
| EC380D |
| VOE14596613 Gear |
| EC330B, EC330C, EC350E, EC360B, EC360C, EC700B, EC700BHR, EC700C, EC700CHR |
| VOE14547275 Gear |
| EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E |
| VOE16689624 Gear |
| DD25B, EC35D, ECR35D, ECR40D |
| VOE17218404 Gear |
| L110G, L110H, L120G, L120H, L150H, L180H, L180H HL |
| VOE11038101 Gear |
| A20C, A20C VOLVO BM, A30 VOLVO BM, A30C, A30C VOLVO BM |
| VOE17220354 Gear |
| L110G, L110H, L120G, L120H, L150H, L180H, L180H HL |
| VOE16659297 Gear |
| DD25B, EC35D, ECR35D, ECR40D |
| VOE14547272 Gear |
| EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E |
| VOE14566409 Gear |
| EC240C, EC290B, EC290C, EC300D, EC300E, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC380EHR, ECR305C, FC2924 |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14569763 | [1] | Gearbox | ||
| 1 | VOE14570930 | [1] | Housing | |
| 2 | VOE14566409 | [1] | Gear | |
| 3 | SA9213-20000 | [18] | Spring washer | |
| 4 | VOE60110006 | [19] | Hexagon screw | |
| 5 | VOE14566432 | [1] | Cover | |
| 6 | VOE14883847 | [2] | Plug | |
| 7 | SA7117-38230 | [2] | Bearing | |
| 8 | VOE14566403 | [1] | Retainer | |
| 9 | VOE14566404 | [1] | Shim | |
| 10 | VOE984088 | [20] | Hex. socket screw | |
| 11 | VOE14566410 | [1] | Planet carrier | |
| 12 | VOE14566411 | [1] | Planet carrier | |
| 13 | VOE14566415 | [5] | Pin | |
| 14 | VOE14566413 | [4] | Planetary gear | |
| 15 | VOE14566414 | [8] | Washer | |
| 16 | SA9325-06012 | [4] | Spring pin | |
| 17 | SA8230-21020 | [1] | Thrust ring | |
| 18 | VOE14566412 | [4] | Needle bearing | |

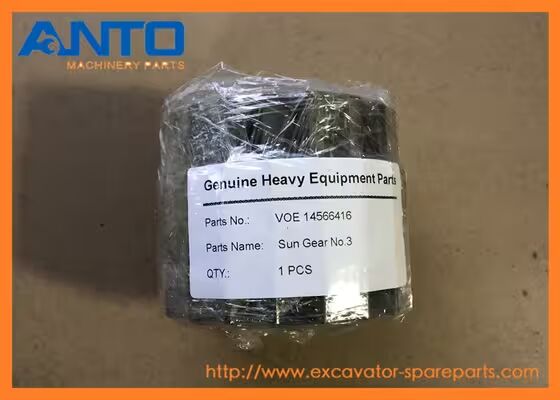

| 19 | VOE14566416 | [1] | Gear | |
| 20 | VOE14566418 | [1] | Planet carrier | |
| 21 | VOE14566423 | [3] | Pin | |
| 22 | VOE14566419 | [1] | Planet carrier | |

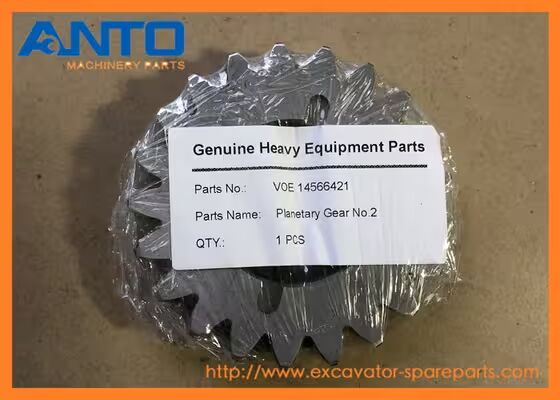

| 23 | VOE14566421 | [3] | Planetary gear | |
| 24 | VOE14566422 | [6] | Washer | |
| 25 | SA9325-06012 | [3] | Spring pin | |
| 26 | VOE14566420 | [3] | Needle bearing | |
| 27 | VOE14566433 | [1] | Thrust washer | |
| 28 | VOE14566424 | [1] | Gear | |
| 29 | VOE14570931 | [1] | Planet carrier | |
| 29A. | VOE14570933 | [3] | Gear | |
| 29B. | VOE14566427 | [3] | Needle bearing | |
| 29C. | VOE14566429 | [6] | Washer | |
| 29D. | VOE14566430 | [3] | Pin | |
| 29E. | SA9325-06012 | [3] | Spring pin | |
| 29F. | VOE14569232 | [1] | Ring | |
| 30 | VOE14566417 | [1] | Ring | |
| 31 | VOE14570934 | [1] | Gear | |
| 32 | VOE990557 | [2] | O-ring | |
| 33 | VOE950677 | [2] | Pin | |
| 34 | VOE914467 | [1] | Retaining ring | |
| 35 | VOE14667679 | [1] | Seal |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
