Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Loại: | Bộ phận thủy lực | Model máy: | E303.5 E304 E305 E305.5 |
|---|---|---|---|
| Ứng dụng: | Máy xúc thủy lực mini, máy xúc lật | Tên sản phẩm: | Khớp nối bơm assy |
| Số phần: | 267-1082 306-4349 | đóng gói: | Thùng xuất khẩu tiêu chuẩn |
| Làm nổi bật: | Excavator engine coupling pump assembly,S3Q2 excavator engine parts,303.5C CR coupling pump assy |
||

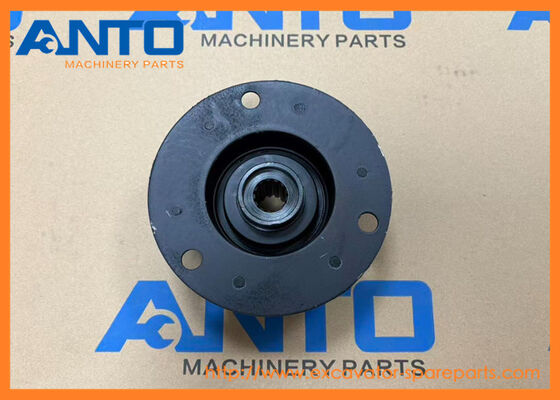

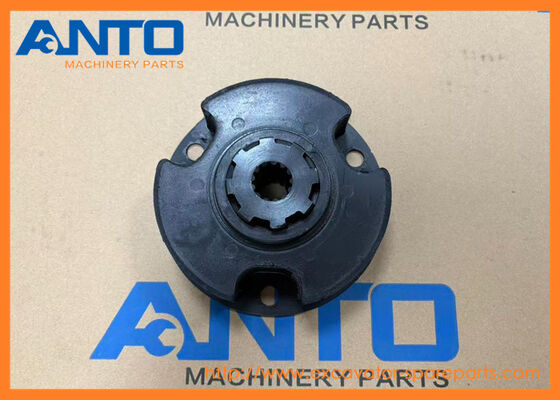

| Name | Coupling Pump Assy |
| Parts No | 267-1082 306-4349 |
| Machine Model | E303.5 E304 E305 E305.5 |
| Category | Hydraulic Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
1. Function
This flexible coupling transmits torque between the engine and hydraulic pump. It absorbs vibration, compensates minor misalignment of shafts, and reduces impact during operation to protect connected components.
2. Features
It consists of metal hubs and elastic buffer elements. Made of high-strength steel and durable rubber material, it features strong load capacity, good shock absorption and long service life under harsh working conditions.
| 1532994 COUPLING |
| 216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247, 2470C, 247B, 247B3, 248, 252B, 252B3, 256C, 2570C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 26... |
| 1532995 COUPLING |
| 216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 262D, 267, 267B,... |
| 1242111 COUPLING-PERMANENT |
| 24M, 303.5C, 303.5D, 303.5E, 303C CR, 304C CR, 304D CR, 304E, 305.5D, 305.5E, 305C CR, 305D CR, 305E, 308E, 311C, 314C, 315D L, 320B, 320B FM LL, 320C, 320D, 320D LRR, 321D LCR, 324D L, 325D L, 328D L... |
| 2791329 COUPLING |
| 304C CR, 305.5, 305.5D, 305.5E, 305C CR, 306 |
| 2087918 COUPLING |
| 901C, 902C, 903C, CS-323C |
| 2580008 COUPLING |
| 901C, 902C, 903C |
| 3056460 COUPLING |
| 901C, 902C, 903C |
| 3056461 COUPLING |
| 901C, 902C, 903C |
| 2072579 COUPLING |
| 303 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 205-6883 | [1] | BOLT (M10X1.25X55-MM) | |
| 2 | 281-8128 | [1] | HOUSING-FLYWHEEL | |
| 3 | 284-8038 Y | [1] | PUMP GP-PISTON & GEAR | |
| 4 | 267-1082 | [1] | COUPLING-PUMP | |
| 5 | 127-4839 M | [2] | BOLT (M10X1.25X25-MM) | |
| 6 | 128-7747 M | [5] | BOLT (M10X1.25X40-MM) | |
| 7 | 191-7503 M | [3] | BOLT (M12X1.75X16-MM) | |
| 8 | 198-4777 | [1] | WASHER-HARD (11X25X10-MM THK) | |
| 9 | 8T-4121 | [7] | WASHER-HARD (11X21X2.5-MM THK) | |
| 10 | 8T-4184 M | [2] | BOLT (M12X1.75X45-MM) | |
| 11 | 8T-4223 | [2] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
20576614
| SAA6D114E-3F PC300-8M0 PC350LC-8M0 |
